Confusion between stainless steel pipes and tubes can lead to incorrect specifications, installation problems, and potential system failures. Understanding their differences is crucial for proper selection.
Stainless steel pipes and tubes differ in their dimensional specifications, manufacturing methods, and intended applications. Pipes are typically measured by nominal pipe size (NPS) and schedule1, while tubes use exact outside diameter and wall thickness.
Making the right choice between pipe and tube impacts project success, cost-effectiveness, and system performance. This comprehensive guide will help you understand the key differences and selection criteria.
The distinction between pipes and tubes goes beyond simple terminology. Each has specific characteristics that make them suitable for different applications, and choosing the wrong type can lead to significant problems.
How Do Stainless Steel Pipes and Tubes Differ in Terms of Dimensions and Measurement?

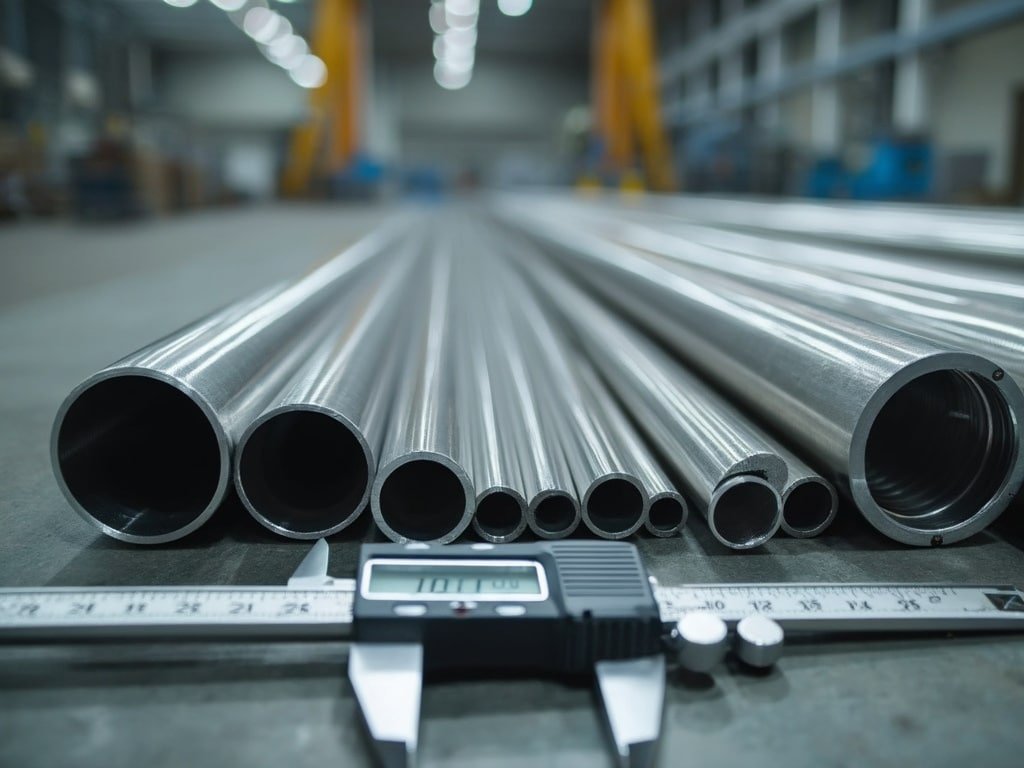

Understanding dimensional differences is crucial for proper specification and installation of stainless steel piping systems.
Pipes use nominal pipe size (NPS) and schedule numbers2, while tubes are specified by actual outside diameter and wall thickness in decimal inches or millimeters.
Dimensional Comparison
| Characteristic | Pipes | Tubes |
|---|---|---|
| Size Designation | NPS | Actual OD |
| Wall Thickness | Schedule | Decimal inches/mm |
| Tolerances | ASME/ASTM | Tighter |
Measurement Standards
Key measurement considerations:
- Nominal vs. actual dimensions
- Wall thickness variations
- Tolerance requirements
- End finish specifications
Size Range Comparison
| Size Parameter | Pipe Standard | Tube Standard |
|---|---|---|
| OD Tolerance | ±1% | ±0.5% |
| Wall Tolerance | +15%/-12.5% | ±10% |
| Straightness | 1/8" per 5ft | 1/16" per 5ft |
What Are the Key Differences in Applications for Stainless Steel Pipes vs. Tubes?
Application requirements often determine whether pipe or tube is the more appropriate choice.
Pipes are typically used for fluid and gas transport in process systems3, while tubes are preferred for precision applications like heat exchangers and instrumentation.
Application Comparison
| Industry | Pipe Applications | Tube Applications |
|---|---|---|
| Chemical | Process lines | Heat exchangers |
| Food | Transport lines | Sanitary systems |
| Pharmaceutical | Utility systems | Clean steam |
| Oil & Gas | Transport | Instrumentation |
Performance Requirements
Critical selection factors:
- Pressure requirements
- Temperature conditions
- Media compatibility
- Surface finish needs
Industry-Specific Standards
| Industry | Pipe Standards | Tube Standards |
|---|---|---|
| Process | ASME B31.3 | ASTM A269 |
| Sanitary | 3A | BPE |
| Power | ASME B31.1 | ASTM A213 |
How Does the Manufacturing Process Vary Between Stainless Steel Pipes and Tubes?
Manufacturing processes affect the final product characteristics and suitability for different applications.
Pipes are typically manufactured with looser tolerances and rougher surfaces4, while tubes require more precise forming and finishing processes.
Manufacturing Process Comparison
| Process Step | Pipe Production | Tube Production |
|---|---|---|
| Forming | Rolling/welding | Drawing/welding |
| Tolerance Control | Standard | Precision |
| Surface Finish | Commercial | Enhanced |
Quality Control Requirements
Key quality factors:
- Dimensional accuracy
- Surface finish
- Weld quality
- Material properties
Production Methods
| Method | Pipe Characteristics | Tube Characteristics |
|---|---|---|
| Seamless | General purpose | Precision applications |
| Welded | Cost-effective | High-quality finish |
| Drawn | Rare | Common |
What Are the Strength and Pressure Capabilities of Stainless Steel Pipes Compared to Tubes?
Understanding pressure ratings and strength capabilities is crucial for system design and safety.
Pipes typically have higher pressure ratings due to standardized wall thickness schedules5, while tubes offer more precise strength calculations based on actual dimensions.
Pressure Rating Comparison
| Parameter | Pipes | Tubes |
|---|---|---|
| Pressure Rating | Schedule-based | Wall thickness-based |
| Safety Factor | ASME B31.3 | Application-specific |
| Burst Pressure | Higher | Application-dependent |
Strength Characteristics
Important strength factors:
- Wall thickness consistency
- Material properties
- Joint strength
- Temperature effects
Performance Analysis
| Factor | Pipe Performance | Tube Performance |
|---|---|---|
| Pressure Handling | Standardized | Application-specific |
| Temperature Range | Broader | More precise |
| Fatigue Resistance | Grade-dependent | Enhanced |
How to Choose Between Stainless Steel Pipe and Tube for Industrial Projects?
Selection criteria must consider multiple factors to ensure optimal system performance.
Choose based on application requirements, pressure ratings, dimensional needs, surface finish requirements, and cost considerations6.
Selection Criteria Matrix
| Criterion | Choose Pipe When | Choose Tube When |
|---|---|---|
| Pressure | High pressure systems | Precise control needed |
| Cost | Budget-conscious | Premium performance required |
| Surface Finish | Standard finish acceptable | High purity needed |
Cost Considerations
Key cost factors:
- Material costs
- Installation requirements
- Maintenance needs
- Life cycle expenses
Project Requirements Analysis
| Requirement | Pipe Suitability | Tube Suitability |
|---|---|---|
| Budget | More economical | Higher cost |
| Installation | Standard methods | Specialized methods |
| Maintenance | Regular | Minimal |
Conclusion
Understanding the differences between stainless steel pipes and tubes is essential for proper selection and successful project implementation.
-
